Every Android app you release into the wild is going to encounter a range of hardware and software, including different versions of the Android operating system. No matter how much time and effort you invest in testing your app, you’re never going to be able to test your app in every situation it could conceivably encounter. If you’ve designed your app with best practices in mind, then it should be flexible enough to handle most of what the real world throws at it, but occasionally your app will encounter a situation it isn’t prepared for, and it may crash as a result.

While most users will overlook the occasional crash, if your app keeps crashing, then eventually even the most patient of users is going to give up on your app, uninstalling it and potentially leaving you a negative review on Google Play as well.

To make sure this doesn’t happen to your app, you need a mechanism that’ll inform you of crashes as soon as they occur, so you can start working on a fix asap. Unfortunately, you can’t rely on your users to notify you of any problems they experience, as your typical mobile user is far more likely to stop using an app, than they are to provide you with a detailed error report.

See also:
Add Facebook and Twitter authentication to your apps, using Firebase and Fabric

Add Facebook and Twitter authentication to your apps, using Firebase and Fabric

March 21, 2017

The only way to guarantee that you’re notified about crashes, is to use a crash reporting tool, and in this article I’m going to show you how to setup and use the popular Firebase Crash Reporting tool. By the end of this article, you’ll know how to use Firebase to generate a comprehensive error report every time your app crashes, making sure you have all the data you need to diagnose, and ultimately fix whatever’s going wrong with your app.

Once I’ve covered all of Firebase’s out-of-the-box functionality, I’ll also be showing you how to customize Crash Reporting so that it records non-fatal, caught exceptions, and how to gather even more information about the circumstances surrounding each crash, by creating custom log messages.

Why should I use Firebase Crash Reporting?

Crash analysis is an essential part of creating a successful app, so there’s no shortage of crash reporting tools and software out there. Before we look at how to add Firebase Crash Reporting to your project, let’s look at some of the reasons why you might want to choose this particular crash analysis solution, over the competition.

  • It’s easy to setup. Essentially, enabling Firebase Crash Reporting requires you to create a new project in the Firebase Console, and then make a few adjustments to your build.gradle files. As soon as you’ve enabled Firebase Crash Reporting, it’ll start recording all fatal errors (unhandled exceptions) automatically, without requiring you to write any additional code.
  • Provides detailed context. When you’re trying to work out what’s causing your app to crash, the more information you have access to, the better. Every time your app crashes, Firebase captures the full stack trace, so you can see the exact method calls, filenames and line numbers that led to this exception being thrown. In addition, Crash Reporting integrates with Firebase Analytics, importing a wealth of Analytics information directly into the Crash Reporting Console.
  • Automatic grouping. When there’s an underlying problem with your app, you can expect the same crash to pop up multiple times – whether that’s multiple times on the same device, or across different devices. One of the easiest ways of identifying factors that might be contributing towards a crash, is to look for similarities between related crash reports. Does this particular crash only happen on a certain version of Android, or when the user tries to access a particular feature? To help you spot these patterns, Firebase automatically groups crash reports with similar stack traces into issues – at this point, moving between the related crash reports is as simple as clicking your mouse.
  • It’s customizable. By default, Firebase records every fatal error that occurs in your app, but you can configure Firebase to report non-fatal exceptions, too, and can even create custom log messages to ensure all the information you need is included in your crash reports.
  • Email updates. Firebase helps you respond to new crashes quickly and efficiently, by sending you an email whenever it records a new crash or a regression (a crash that you previously marked as resolved). This ensures that you can start working on a fix straight away.

Firebase Crash Reporting does have a lot to offer Android developers, but there is one major drawback you need to be aware of: Firebase can only record crashes that occur on devices where Google Play Services is installed, and Google Play Services is blocked in some parts of the world, most notably China.

Before you dive into adding Firebase Crash Reporting to your app, it’s well worth spending some time analyzing your app’s audience using a service like Firebase Analytics or the Google Play Developer Console. If a significant portion of your audience is located in areas where Google Play Services is blocked, then Firebase may not be the best crash analysis solution for your particular project.

See also:
How to start using AdMob with Firebase to monetize your app

How to start using AdMob with Firebase to monetize your app

September 2, 2016

Connect your app

You configure a project to use Firebase Crash Reporting, in pretty much the same way you setup any Firebase service:

  • Sign up for a free Firebase account.
  • Log into the Firebase Console.
  • Click the ‘Create New Project’ button.
  • Give your project a name, then click ‘Create Project.’
  • Select ‘Add Firebase to your Android App.
  • Enter your project’s package name and debug signing certificate (SHA-1).
  • Select ‘Download google-services.json,’ followed by ‘Continue.’
  • Open your project in Android Studio, and make sure you have the ‘Project’ view selected. Drag your google-services.json file into your project’s ‘app’ directory.

Next, open your project-level build.gradle file and add the Google Services plugin:

buildscript {
   repositories {
      jcenter()
   }
   dependencies {
      classpath 'com.android.tools.build:gradle:2.2.2'
      classpath 'com.google.gms:google-services:3.0.0'

Open your module-level build.gradle file and add the Google Services plugin:

apply plugin: 'com.google.gms.google-services'

Add the Firebase Crash Reporting library as a project dependency:

dependencies {
   compile fileTree(dir: 'libs', include: ['*.jar'])
   androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {
exclude group: 'com.android.support', module: 'support-annotations'
   })
   compile 'com.android.support:appcompat-v7:25.2.0'
   testCompile 'junit:junit:4.12'

   compile 'com.google.firebase:firebase-crash:10.2.0'
}

Once you’ve completed these steps, Firebase will generate a report every time your app crashes. You can view all of this information in the Crash Reporting Console.

In the next few sections, we’re going to explore the different areas of the Console, but since we’ve only just enabled Firebase, the Crash Reporting Console is going to be pretty much empty.

To help you see exactly what information you can expect to find in each section, let’s take a few moments to generate a sample crash report, so we’ll actually have something to look at once we log into the Console.

Create your first crash report

The easiest way to create a sample crash report, is to throw a manual exception as soon as your project launches, by adding FirebaseCrash.report to your project’s onCreate() method:

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import com.google.firebase.crash.FirebaseCrash;

public class MainActivity extends AppCompatActivity {

   @Override
   protected void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.activity_main);
       FirebaseCrash.report(new Exception("My first Android non-fatal error"));

       //I'm also creating a log message, which we'll look at in more detail later//
       FirebaseCrash.log("MainActivity started");
   }
}

Launch your app on either a physical Android smartphone or tablet, or a compatible AVD. You can check that Crash Reporting is working correctly by opening Android Studio’s LogCat Monitor and looking for the following messages: “FirebaseCrash reporting initialized” and “FirebaseApp initialization successful.”

Exploring the Crash Reporting Console

Once you’ve verified that Crash Reporting is working correctly, you can log into the Crash Reporting Console:

  • Log into the Firebase Console.
  • Select your project.
  • Select ‘Crash Reporting’ from the left-hand menu.

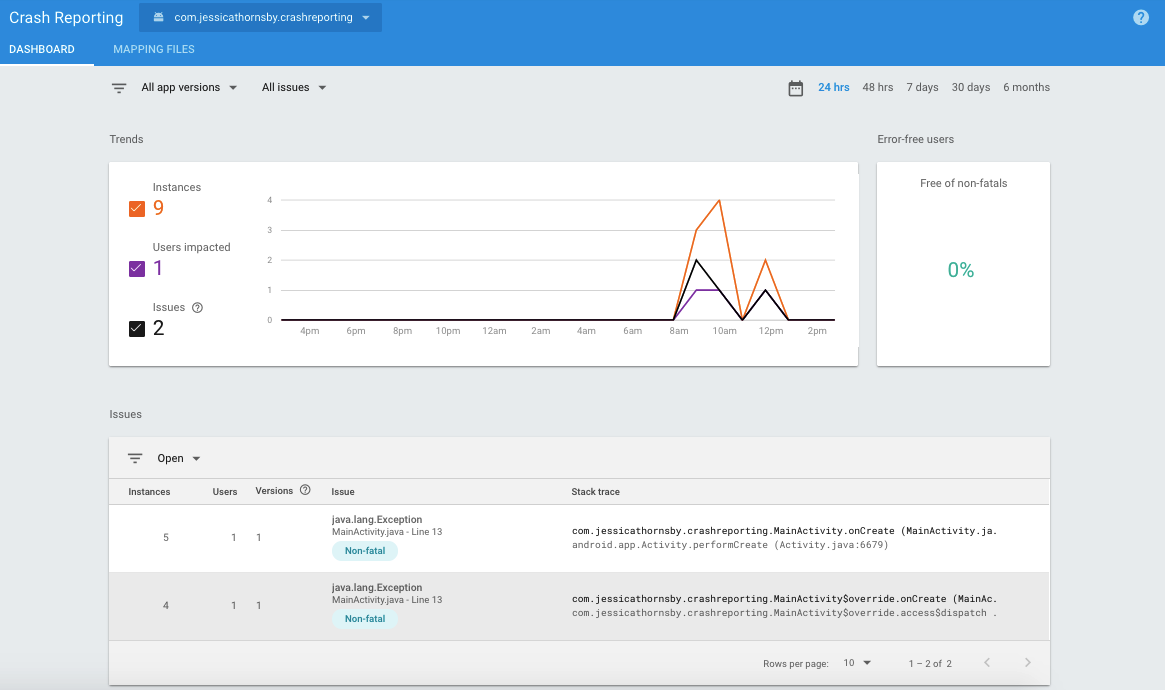

The first screen you’ll see is the Dashboard, which is divided into a Trends graph and an Issues table.

The Trends graph displays a timeline of the number of crashes that have occurred in your app over a period of time. Sometimes, just glancing at this graph may reveal a correlation between when a crash first started occurring, and an important event, such as you releasing a new version of your app, or Google releasing a new version of Android.

In addition to the Trends timeline, you’ll also find the following information:

  • Instances. The number of crashes that Firebase has recorded in your app.
  • Users impacted. The number of users who’ve experienced crashes.
  • Issues. The number of issues that Firebase has recorded. Firebase identifies all the crash events that have similar stack traces, and groups them into an issue (these were referred to as “clusters” in previous versions of the Crash Reporting Console). If a crash has happened more than once, then a single issue will consist of multiple crash reports.
  • Error-free users. The total percentage of users who haven’t encountered crashes.

The Dashboard also contains an Issues table, which displays the following information for each Issue:

  • Instances. The number of times this particular crash has occurred.
  • Users. The number of users who’ve encountered this crash.
  • Versions. The earliest version of your app where this crash has been recorded, and the latest version where it’s been recorded.
  • Issue. A summary of the crash, including the line and Activity where the crash occurred, and whether it was a fatal or non-fatal error. By default, Firebase only records fatal errors.
  • Stack trace. An abbreviated version of the stack trace.

To view the full crash report (or crash reports, if this crash has happened more than once) click anywhere within that Issue’s row, and then select the ‘View Details’ button that appears.

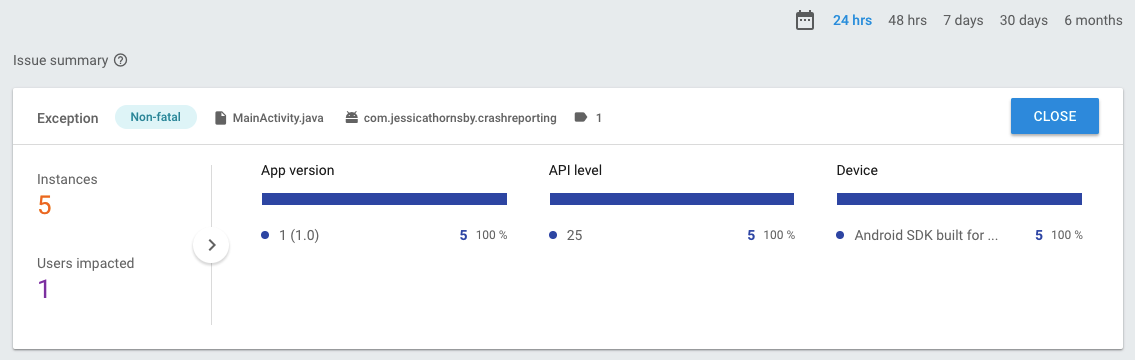

On the following screen, you’ll find an ‘Issue Summary’ section that contains a breakdown of all the different devices and versions of your app where Firebase has recorded this particular crash.

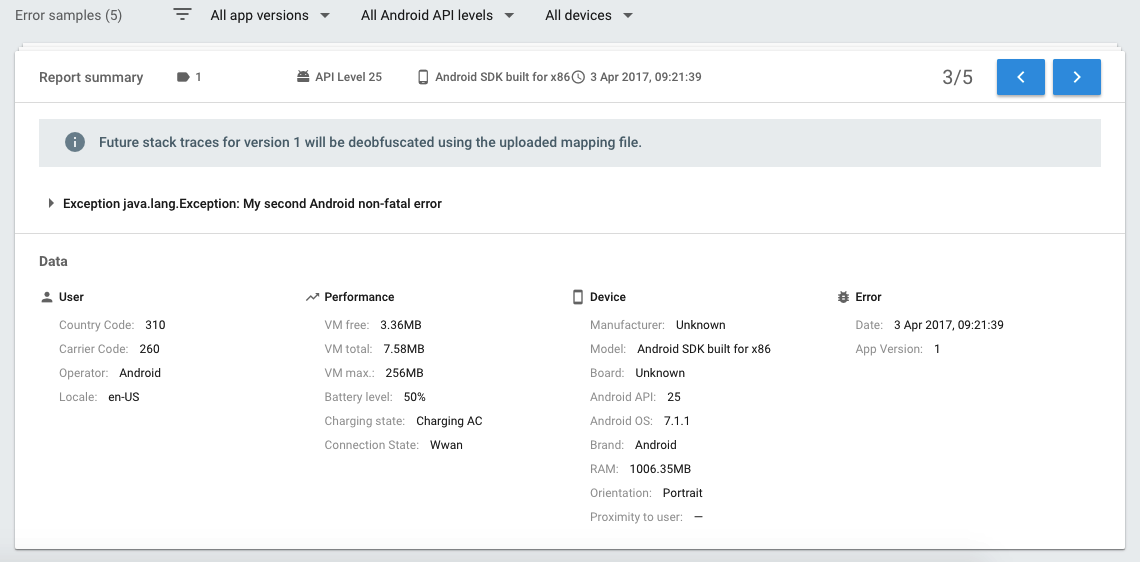

This screen also contains an ‘Error samples’ section where you’ll find the full stack trace, plus some very specific details about the smartphone or tablet where this error was recorded – right down to whether the device was connected to Wi-Fi at the time, and how much battery it had remaining.

If Firebase has recorded multiple instances of the same crash, then you’ll see a set of arrow buttons that you can use to move between these crash reports.

Examining events leading up to a crash

So far, we’ve seen how the Crash Reporting Console can provide you with an insight into the kind of devices where each crash is happening, including their hardware, software and other device settings. However, we still don’t know what the user was trying to do when the crash occurred. Had they just tried to launch a new Activity, or received a Firebase notification? Were they launching your application for the first time after updating it?

Firebase Crash Reporting uses its Firebase Analytics integration to “record” a wide range of events. If any of these events occur on the device prior to a crash, then Firebase includes this information in its crash report. You’ll find this information in the Dashboard’s ‘Log’ section.

Note that these are just the events that preceded the crash, so there’s no guarantee that they’re related to the crash in any way. The most effective way of zeroing in on the events that might be contributing towards a crash, is to compare the related crash reports. If the same event keeps cropping up, then you should add this event to your list of likely suspects!

Thanks to its Firebase Analytics integration, the Crash Report Console logs all of the following events by default:

  • first_open. The user has launched your app for the first time after installing it.
  • in_app_purchase. A user has completed an in-app purchase.
  • user_engagement. Triggered periodically when the user is interacting with your app in the foreground.
  • session_start. The user has started and engaged with your app for longer than your project’s setMinimumSessionDuration value, which is 10 seconds unless you specify otherwise. A session must be terminated before a new session can be started – if your app is running in the background and then gets called to the foreground before the session times out, then this is classed as the same session. By default, Android terminates a session following 30 minutes of inactivity, but you can change this value using the setSessionTimeoutDuration attribute, if required.
  • app_update. The user has launched your app for the first time following an update.
  • app_remove. The user has removed your application’s package from their device. This event is triggered regardless of the app’s installation source, so you’ll be notified of app_remove events even if the user installed your app from somewhere other than the Google Play store.
  • os_update. The user updated to a new version of Android.
  • app_clear_data. Your app has crashed or thrown an exception.
  • notification_foreground. Your app received a notification from Firebase Notifications, while it was running in the foreground.
  • notification_receive. Your app received a Firebase notification, while it was running in the background.
  • notification_open. The user opened a notification sent by Firebase Notifications.
  • notification_dismiss. The user dismissed a Firebase notification.
  • dynamic_link_first_open. The user has opened your app via a dynamic link for the first time.
  • dynamic_link_app_open. The user has opened your application via a dynamic link.
  • dynamic_link_app_update. The user updated your application via a dynamic link.

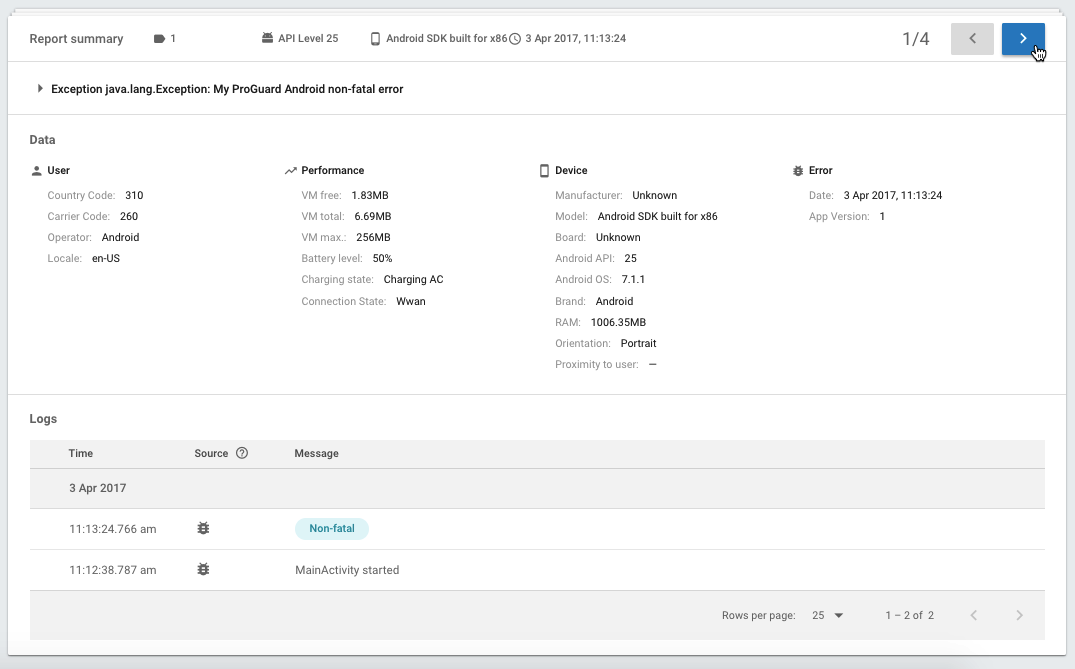

In addition to these defaults, you can record any event that happens in your app, by including FirebaseCrash.log() in your project and providing an accompanying log message. This information will then be included in your crash reports, where appropriate. For example, in the following code I’m adding FirebaseCrash.log to my MainActivity’s onCreate() method. If my application crashes following this event, then this information will appear in the ‘Logs’ section of the Crash Reporting Console, and I’ll know that the user tried to launch the MainActivity, right before the crash.

@Override
protected void onCreate(Bundle savedInstanceState) {
   super.onCreate(savedInstanceState);
   setContentView(R.layout.activity_main);
   FirebaseCrash.log("MainActivity started");

Uploading a ProGuard mapping file

ProGuard is a useful tool that can help optimize your code, reduce the size of your compiled APK, and make your code more difficult to reverse engineer, however ProGuard also obfuscates your code. This means that Firebase Crash Reporting will be unable to make sense of your stack traces, as the code in the stack traces won’t correlate to your project code.

Thankfully, whenever you build a release version of your app, ProGuard generates a mapping.txt file, which contains all the information Firebase needs to map ProGuard’s obfuscated symbols to your project’s original class, method and field names. If you’re going to get the full benefit of Firebase’s crash reporting features, then you need to upload this mapping.txt file to the Crash Reporting Console.

ProGuard doesn’t generate a mapping file until you create a signed APK, so if you want to test this feature and don’t have a release version of your app, then you’ll need to generate a signed APK, by selecting ‘Build > Generate Signed APK…’’ from the Android Studio toolbar, and then following the onscreen instructions.

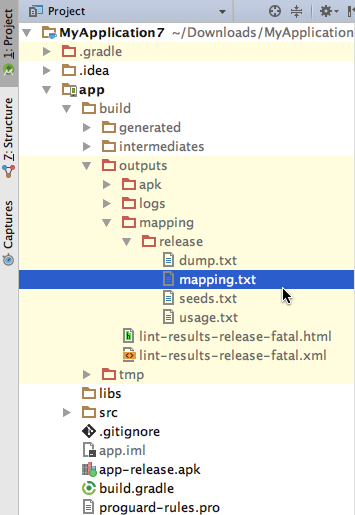

Once you have your signed APK, make sure Android Studio’s ‘Project’ view is selected, and then open the app/build/outputs/mapping/release directory – you’ll find the mapping file inside.

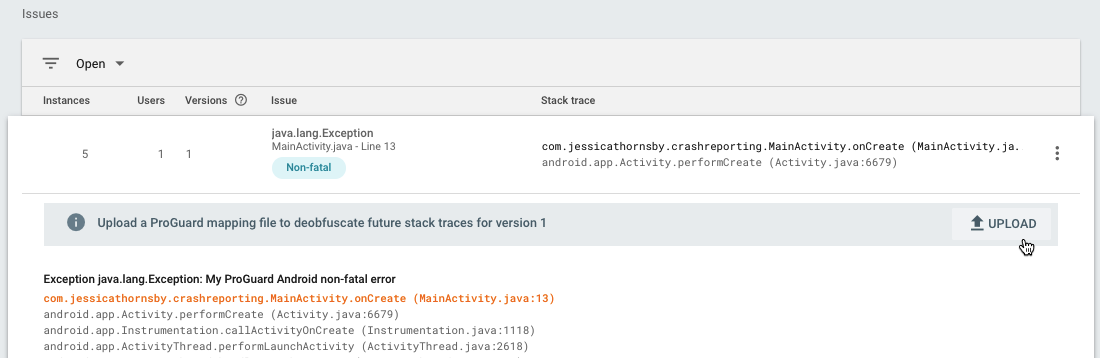

To upload this mapping file to the Crash Reporting Console:

  • Create a copy by dragging the file out of Android Studio and dropping it somewhere easily accessible, such as your Desktop.
  • Navigate to the ‘Dashboard’ section of the Crash Reporting Console (by selecting ‘Crash Reporting’ from the left-hand menu).
  • Scroll to the ‘Issues’ section and click any issue associated with the version of your app that generated this mapping file. Click the ‘Upload’ button.

  • Follow the onscreen instructions to upload your mapping file.

ProGuard generates a new mapping file each time you create a new release build, replacing the previous mapping file in the process, so remember to upload a new version of the mapping file to Firebase, every time you release a new version of your app.

Since ProGuard overrides your mapping.txt file with each release, the current mapping file that exists in your Android Studio project won’t be applicable to any previous releases of your app. This isn’t an issue for Firebase, as it keeps a record of all the mapping.txt files you upload, but it can pose a problem if a user submits an obfuscated stack trace from a previous version of your app, outside of the Crash Reporting Console, for example if a user emails a stack trace to you directly.

The mapping file in your Android Studio project may not contain the mappings you need to make sense of this scrambled stack trace, but you always download previous Proguard mapping files from the Firebase Console.

To download an earlier version of your mapping file, head over to the Crash Reporting Console and select its ‘Mapping Files’ tab.

Find the version of the mapping file you need, click its accompanying three-dotted menu icon and then select ‘Download.’

Generating crash reports manually

By default, Firebase Crash Reporting automatically reports all uncaught exceptions that cause your app to crash, but some exceptions may be caught by your code. Firebase won’t notify you about these non-fatal exceptions, but fixing even minor errors can help you refine the user experience, so you’ll typically want to know about everything that goes wrong with your app, no matter how small.

You can tell Firebase to record a caught exception, by using FirebaseCrash.report to generate a manual report, in exactly the same way we used FirebaseCrash.report to generate a sample report at the start of this article. For example:

try {
    //Some code here//
} catch (Exception e) {
    //Generate a report and use FirebaseCrash.log to capture some additional information//
    FirebaseCrash.log("Custom log messages goes here");
    FirebaseCrash.report(e);
}

If you do record caught exceptions, then these will be marked as non-fatal in the Crash Reporting Console.

Notifying your users

When you do successfully fix an error that was causing your app to crash, you may want to consider letting your users know about it.

There’s many different ways of informing your users about a fix, ranging from the subtle (such as mentioning the fix in your changelog) to the decidedly less subtle, such as writing about the fix on your app’s website, forum or blog, or even sending an email blast to your entire user base.

Deciding how much attention to draw to a fix can be a tricky balancing act. On the one hand you’ll want to ensure that anyone who was thinking about uninstalling your app knows that the crash has been fixed. However, at the same time you don’t exactly want to publicize the fact that your app was crashing, to the point where people who didn’t even experience the crash themselves now know that there was a problem with your app.

One possible solution you may want to explore, is using Firebase Notifications to identify the users who experienced this particular crash, and then sending them a targeted notification letting them know that this issue has now been resolved.

Wrapping up

When you release an Android app, you should assume that you app is going to crash at some point, but what can make your app stand out from the competition is how quickly you fix any crashes that do occur.

You now know how to use Firebase Crash Reporting to make sure you receive a notification every time your application crashes, and how to gather all the information you need from the Crash Reporting Console. We also looked at some options for customizing Firebase Crash Reporting to make sure it records the events and the exceptions (including non-fatal exceptions) you need to know about, in order to create a more robust, error-free application and, ultimately, a happier user base.
