Today, Toshiba announced that it has begun commercial production of its new T4K82 CMOS image sensor for smartphones and tablets. The sensor packs in high-end features which could give a boost to next-generation products.

The T4K82 is a 13 megapixel BSI (back-illuminated) CMOS image sensor, which is a match for most modern high-end smartphones. However, the big talking point is that Toshiba’s new chip is capable of 240fps interlaced slow-motion video capture with a full 1080p resolution, which, on paper, is the highest frame rate available in the industry. It can also scale down its resolution to QVGA (320×240) for 900fps equivalent video capture.

To accomplish this, Toshiba makes use of its own “Bright Mode” technology to boost frame brightness by up to four times. This is achieved through “charge binning”, which adds the charges of two pixels and outputs the sum as one pixel with double brightness. Typically, high speed frame capture suffers from underexposure due to the shortness of time available to capture light. Toshiba provides an interlaced video output when using Bright Mode, effectively doubling the perceived frame rate of the video.

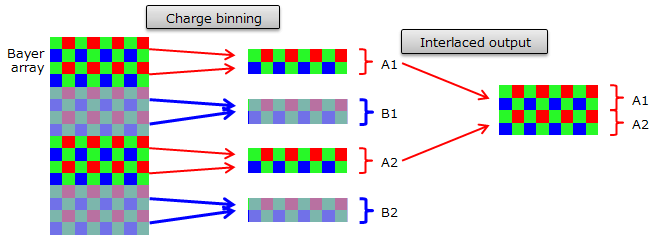

Charge Bunning to Interlaced Output

However, you won’t be able to view interlaced playback on a typical smartphone display. Instead, Toshiba provides its own interlacing-progressive conversion program to output high-speed capture to a progressive format. Depending on the quality of the conversion and how well charge binning works, the motion may or may not be quite as polished as a normal progressive capture could be at this frame rate and resolution. Even so, this technology should still offer additional smoothness and clarity over existing slow-motion implementations in the mobile space.

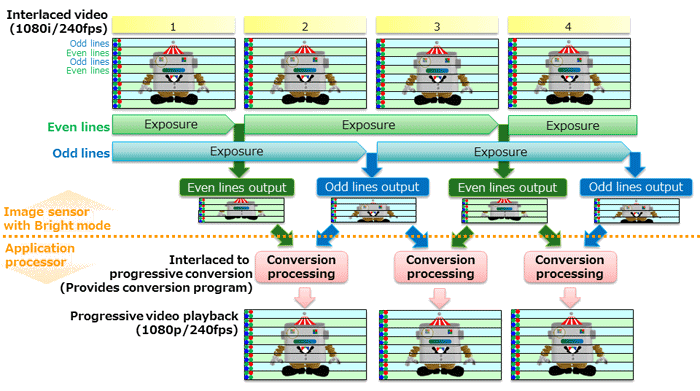

Toshiba Interlaced Video Conversion

Slow motion video capture has become an increasingly popular feature in high-end smartphones. The new Galaxy S6, HTC One M9, Xperia Z3, and OnePlus One, among others, all support 120fps slow-motion video capture at resolutions of 720p. Toshiba’s sensor will double the equivalent frame rate and increase image clarity over current smartphones capable of slow-motion recordings.

While no products fitted with the T4K82 sensor have been announced yet, entering mass production means that we could well see 240fps, full HD video capable smartphones available later in the year.
